LEDs
- LED stands for Light Emitting Diode.
- An LED is semiconductor device that emits light due to Electroluminescence effect.
- LEDs are used in almost each electronical device as indicators.
- CHIP 0603(1608)

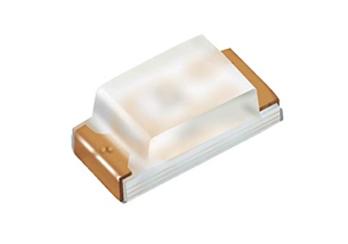

- 0603 Package(0.4T) Chip LED
■ 1.6 mm X 0.8 mm SMD LED, 0.4/0.6/0.8 mm thickness
■ Low power consumption
■ Compatible with automatic placement equipment
■ Ideal for backlight and indicator
■ Packing : 4000pcs / reel
■ RoHS compliant
| Type | Part No. | Lighting Color | Dominant Wavelegth (nm) |
Luminous Intensity IV(Mcd) @IF=5/20mA |
Forward Voltage(v) | Viewing Angle2 1/2 |
|
| Typical | Typical | Min | Max | Typ | |||
| 0603(1608) | L0402QRC | Ultra Red | 624 | 100 | 1.8 | 2.4 | 120 |
| L0402QYOC | Ultra Orange | 604 | 120 | 1.8 | 2.4 | 120 | |
| L0402QYC | Ultra Yellow | 588 | 120 | 1.8 | 2.4 | 120 | |
| L0402QGC | Ultra Yellow Green | 572 | 40 | 1.8 | 2.4 | 120 | |
| L0402PGC | Ultra Dark Green | 560 | 15 | 1.8 | 2.4 | 120 | |
| L0402QBGC | Ultra Green | 518 | 220 | 2.6 | 3.4 | 120 | |
| L0402QBC | Ultra Blue | 465 | 50 | 2.6 | 3.4 | 120 | |
| L0402QWD | White | X=0.29, Y=0.28 | 180 | 2.6 | 3.4 | 120 | |
| L0402QWYD | Warm White | X=0.42, Y=0.43 | 180 | 2.6 | 3.4 | 120 | |
