LEDs

  • LED stands for Light Emitting Diode.
  • An LED is semiconductor device that emits light due to Electroluminescence effect.
  • LEDs are used in almost each electronical device as indicators.
CHIP 1206(3216)
CHIP 1206(3216)

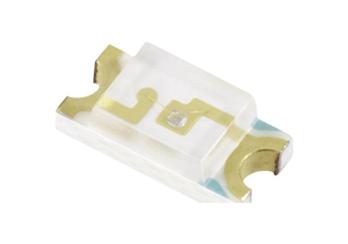

1206 Package(1.5T/1.7T) CHIP LED
■ 3.2 mm X 1.6 mm SMD LED, 1.5/1.7 mm thickness
■ Low power consumption
■ Various colors and lens types available
■ Ideal for backlight and indicator
■ Packing : 3000pcs / reel
■ RoHS compliant
Type Part No. Lighting Color　 Dominant Wavelegth
 (nm)		 Luminous Intensity
IV(Mcd) @IF=5/20mA		 Forward Voltage(v) Viewing Angle2
1/2
Typical Typical Min Max Typ
1206(3216) L1206QRC Ultra Red 624 100 1.8 2.4 120
L1206QYOC Ultra Orange 604 120 1.8 2.4 120
L1206QYC Ultra Yellow 588 120 1.8 2.4 120
L1206QGC Ultra Yellow Green 572 40 1.8 2.4 120
L1206PGC Ultra Dark Green 560 15 1.8 2.4 120
L1206QBGC Ultra Green 518 220 2.6 3.4 120
L1206QBC Ultra Blue 465 50 2.6 3.4 120
L1206QWD White X=0.29, Y=0.28 180 2.6 3.4 120
L1206QWYD Warm White X=0.42, Y=0.43 180 2.6 3.4 120
