LEDs
- LED stands for Light Emitting Diode.
- An LED is semiconductor device that emits light due to Electroluminescence effect.
- LEDs are used in almost each electronical device as indicators.
- PLCC 3020

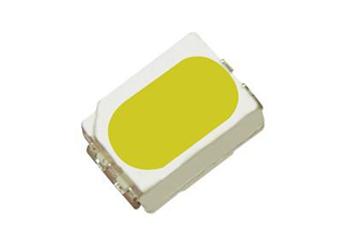

- PLCC 3020 Package(1.3T) Side-look LED
■ 3.0 mm X 2.0 mm SMD LED, 1.3 mm thickness
■ Ultra bright reflector type PLCC 2 LED
■ 120 degree viewing angle
■ Compatible with SMT Automatic Equipment
■ EIA STD Package
■ RoHS compliant
| Type | Part No. | Lighting Color | Dominant Wavelegth (nm) |
Luminous Intensity IV(Mcd) @IF=5/20mA |
Forward Voltage(v) | Viewing Angle2 1/2 |
|
| Typical | Typical | Min | Max | Typ | |||
| 3020 | L3020QRC | Ultra Red | 624 | 350 | 1.8 | 2.4 | 120 |
| L3020QYOC | Ultra Orange | 604 | 350 | 1.8 | 2.4 | 120 | |
| L3020QYC | Ultra Yellow | 588 | 350 | 1.8 | 2.4 | 120 | |
| L3020QGC | Ultra Yellow Green | 572 | 150 | 1.8 | 2.4 | 120 | |
| L3020PGC | Ultra Dark Green | 560 | 45 | 1.8 | 2.4 | 120 | |
| L3020QBGC | Ultra Green | 518 | 1000 | 2.6 | 3.4 | 120 | |
| L3020QBC | Ultra Blue | 465 | 350 | 2.6 | 3.4 | 120 | |
| L3020QWD | White | X=0.29, Y=0.28 | 2200 | 2.6 | 3.4 | 120 | |
| L3020QWYD | Warm White | X=0.42, Y=0.43 | 2200 | 2.6 | 3.4 | 120 | |
