LED stands for Light Emitting Diode.
An LED is semiconductor device that emits light due to Electroluminescence effect.
LEDs are used in almost each electronical device as indicators.

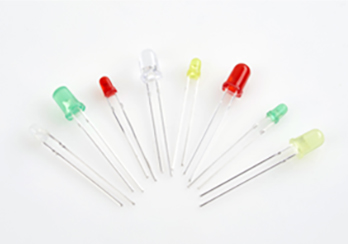

5Ø LAMP LED: 5mm Plug-In Lamp LED
■ Single Color, Bi-Color, RGB Color
■Low power consumption
■Popular T-1 ¾ size LED package (5mm)
■Mounting style : Through-Hole
■Rugged and reliable
■RoHS compliant

Type	Part No.	Color	Lens Type	Dominant Wavelegth (nm)	Luminous Intensity IV(Mcd) @IF=5/20mA	Forward Voltage(v)		Viewing Angle2 1/2
Type	Part No.	Color	Lens Type	Typical	Typical	Min	Max	Typ
5Ø LED	L504QRC	Red	Diffuse	620	40	1.8	2.4	30
	L504QBGC	Green	Diffuse	520	40	1.8	2.4	30
	L504QYC	Yellow	Diffuse	585	50	1.8	2.4	30
5Ø High Brightness LED	L502QRC	Ultra Red	Water Clear	620	800	1.8	2.2	30
	L502QYC	Ultra Yellow	Water Clear	585	1000	1.8	2.2	30
	L502QGC	Ultra Yellow Green	Water Clear	572	500	1.8	2.2	30
	L502QBGC	Ultra Green	Water Clear	520	2000	1.8	2.2	30
	L502QBC	Ultra Blue	Water Clear	460	1000	2.8	3.6	30
	L502QWC	Ultra White	Water Clear	X=0.29, Y=0.28	2000	2.8	3.6	30
5Ø BI-COLOR	L504QRQGW	Ultra Red	Diffuse	624	400	1.8	2.4	30
	L504QRQGW	Ultra Yellow Green	Diffuse	572	300	1.8	2.4	30
	L504QRQYW	Ultra Red	Diffuse	624	400	1.8	2.4	30
	L504QRQYW	Ultra Yellow	Diffuse	589	400	1.8	2.4	30
	L504QRQBW	Ultra High Red	Diffuse	624	600	1.8	2.4	30
	L504QRQBW	Ultra Blue	Diffuse	468	1500	2.8	3.6	30
	L504QRQBGW	Ultra High Red	Diffuse	624	600	1.8	2.4	30
	L504QRQBGW	Ultra Green	Diffuse	525	1500	2.8	3.6	30
	L504QBQBGW	Ultra Blue	Diffuse	468	1500	2.8	3.6	30
	L504QBQBGW	Ultra Green	Diffuse	525	3000	2.8	3.6	30
5Ø RGB	L504QRQBGQBC	Ultra Red	Water Clear	624	800	1.8	2.4	30
	L504QRQBGQBC	Ultra Green	Water Clear	525	3000	2.8	3.6	30
	L504QRQBGQBC	Ultra Blue	Water Clear	468	1500	2.8	3.6	30
